PTFE Cables have outstanding mechanical & electrical properties. They are heat resistant and have its application for temperature range from -65 °C to 260 °C.
In most adverse industrial conditions, where chemical fumes & other liquids make all other types of cables are vulnerable, PTFE polymer becomes an excellent solution as it is chemically inert to most of industrial chemicals. Its outstanding di electric properties even at high elevated temperatures make it suitable for harsh industrial applications.
ELTEC PTFE wires conforms to US Military MIL – W – 16878D and Indian defense specifications JSS 51034.
As per these standards, PTFE wires are classified in three main working voltage grades.
| GRADE | SPARK TESTING | DIE ELECTRIC TESTING |
| ET (250 V) | 2500 V AC | 1500 V AC |
| E (600 V) | 3400 V AC | 2000 V AC |
| EE (1000 V) | 5000 V AC | 3000 V AC |
ELTEC PTFE Insulated hook- up wires are used extensively for both electrical and electronic equipments. Hook- up wires are required to perform in increasingly critical environments. Cost effective production methods necessitate uniform wire handling characteristics, such as strip ability, strand uniformity, precise dimension and permanent colors.
ELTEC PTFE Insulated Power Cables are used for critical high temperature Industrial applications near boilers, furnaces, ovens etc. in processing plants. PTFE wires normally come with silver plated copper wire conductors (190°C) or nickel plated copper wire conductors (260°C on request).
ELTEC PTFE Instrumentation Cable products are used for signal and energy transmission with minimum interference, and the they are sunlight, heat, and moisture resistant means they can survive in some of the toughest conditions.

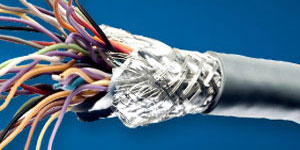

ELTEC PTFE Insulated Multi Core Shielded cables are specially designed for its application in electronics & communication equipments, Various equipments for satellite, defense, Radar & Space applications.
ELTEC PTFE Insulated RTD CABLESare generally used to transmit signal from RTD sensor to control unit.
Multi stranded SPC conductors are used and are available in 2 core 3 core, 4 core, 6 core, 8 core or even more as per requirement. They are further SPC shielded or outside SS Metal braided as per requirement.

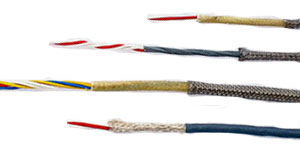

THERMOCOUPLE CABLES are used to transmit signal from Thermocouple sensor to control unit. J, K, T, E, N, R, S etc. type of Thermocouple & Extension grade cables. They are available in flat & twisted pair construction. They can be further shielded or outside SS Metal braided as per requirement.
