Model Name/Number	JUMO tecLine ClO2 and O3,Sensor for Chlorine Dioxide and Ozone (202634)
Brand	JUMO
Application	Industrial Use
Measurement Length	0-10.00 Ppm
Precision	0.01 Ppm
Size	164*37*40 mm

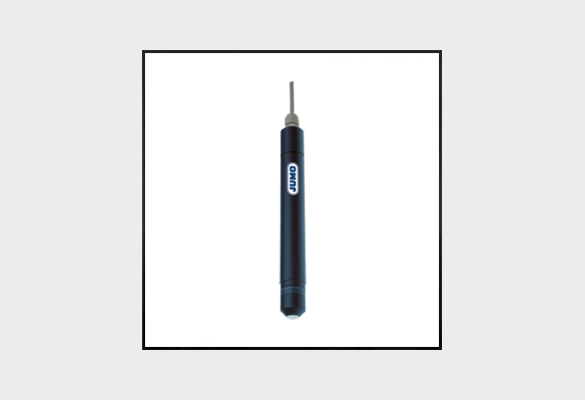

JUMO tecLine ClO2 and O3, Sensor for Chlorine Dioxide and Ozone (202634) These membrane-covered amperometric sensors are used to measure the concentration of chlorine dioxide or ozone in aqueous solutions (e.g. drinking water, swimming pool water, industrial water, process water, and cooling water). The sensor for chlorine dioxide can be used to measure chlorine dioxide from chlorite/chlorine and chlorite/hydrochloric acid plants. The sensor for ozone can be used to measure electrolytically generated ozone among other things. The sensors are not suitable for detecting the absence of chlorine dioxide or ozone. The integrated electronics of the sensors provide a temperature-compensated current signal of 4 to 20 mA. A downstream device (indicator, controller, recorder, PLC, etc.) is used for calibration. The sensors can be connected directly to a suitable display and control device. The display/control device JUMO dTRANS AS 02 (data sheet 202553) or the JUMO AQUIS 500 AS (data sheet 202568) are especially suitable for the combination with these sensors. They provide the voltage required for the supply of the sensors and allow for easy calibration of the measuring system.

• Two-electrode principle
• Easy calibration
• Integrated temperature compensation
• Proven measuring system
• Analog and digital version

• Drinking water disinfection
• Swimming pool disinfection
